Key Features

Type - The Builder is an ATX 12V 600W power supply making it compatible for all types of ATX Mainboards and CPU’s.

Cooling Fan - A 12cm cooling fan enables excellent airflow and a power supply with a lower noise.

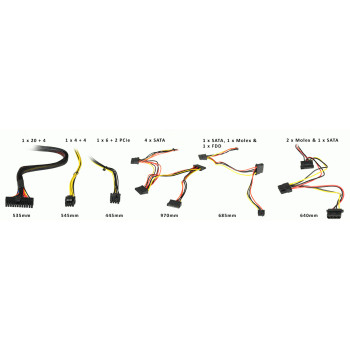

Connectors - The Builder 600W comes with:

20 + 4 pin (535mm) Motherboard

4 + 4 pin (545mm) 12v Motherboard / CPU

1 x 6 + 2 Pin (445mm) PCI-E (Graphics Card)

4 x SATA (970mm)

1 x SATA / 1 x Molex / 1 x FDD (685mm)

2 x Molex & 1 x SATA (640mm).

Protection - Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Load Protection (OLP), Over Power Protection (OPP) and Short Circuit Protection (SCP).

PSU Specifications

AC INPUT: 200-240VAC 6A 47-63HZ

DC +3.3V +5V +12V1 -12V +5VSB

Output 20A 20A 40A 0.3A 2.5A

Max Output: 600W
